How well a roof performs depends heavily on its pitch. A steep roof sheds water fast, the way the angle of a ski jump builds a skier's speed. Lower-pitch roofs don't get that help, so water, airflow and moisture all have to be handled by deliberate design decisions instead.

The recent Winter Olympics in the Italian Alps showcased spectacular scenery and exceptional athletic skill. Among the most striking events is the Large Hill ski jump, where athletes descend the steep "in-run" track before launching into flight. The physics behind this event is unmistakable: gravity and the steep slope combine to rapidly build speed, enabling the skier to jump hundreds of metres and potentially secure a medal.

Pitch does the same quiet work in a roof. Drop the angle and the gravity assist disappears. Water lingers, air moves more slowly beneath the cladding, and moisture that would have cleared itself now has to be designed out. Low-pitch roofs don't fail because they are flat. They fail when they are detailed as though they were steep.

Water naturally flows downhill, but on low slopes, this process slows and becomes more complex. The reduced effect of gravity on steep roofs introduces three main technical challenges:

1. Condensation accumulation:

Metal roofing cools rapidly at night. Moisture can condense on the underside of the cladding and transfer directly onto the underlay. With minimal roof pitch, this moisture is retained for longer and may repeatedly wet the same areas.

2. Elevated thermal stress:

Solar radiation can drive temperatures beneath metal roofing to very high levels during the day, followed by fast cooling at night. This is worse on low pitch because air moves more slowly between the roof cladding and the roof underlay. These temperature cycles accelerate membrane ageing and raise vapour drive into the roof assembly.

3. Reduced drying potential:

Without a dedicated ventilation space, moisture that bypasses the cladding or forms through condensation must rely on limited incidental ventilation to be removed. In low-slope roof geometries, gravity alone cannot shed moisture immediately.

Low-pitch roofs succeed as systems, not as products. Much as Olympic ski jumping depends on engineering, aerodynamics, materials and testing working together, a low-slope roof performs only when its layers do.

The critical elements of a low-pitch roof system include:

1. Weather-Resistive Underlays and Drying Potential

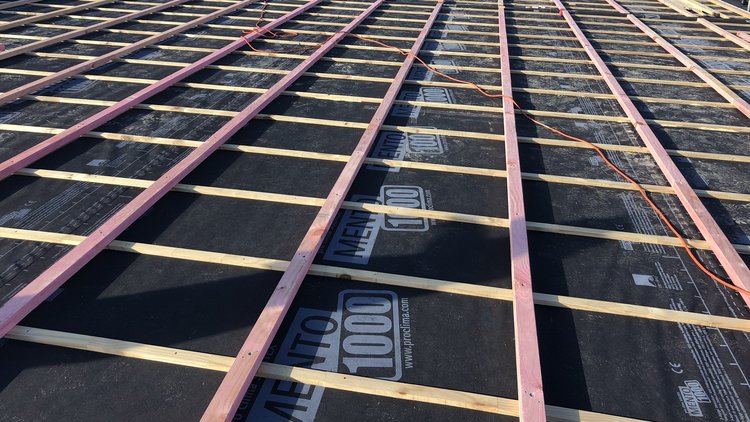

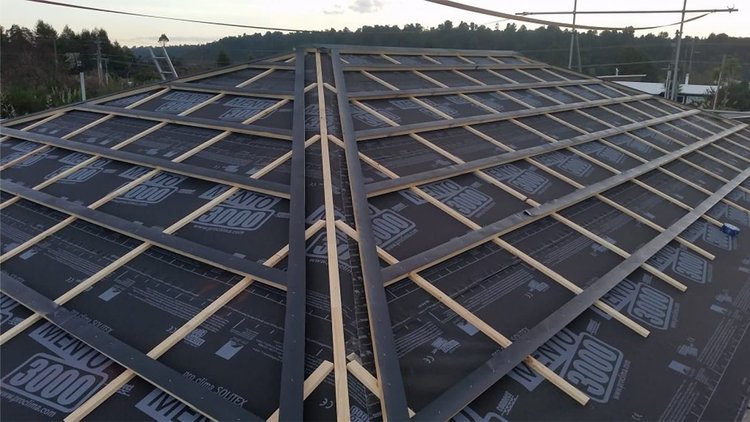

With reduced gravitational force to shed water quickly, the choice of roof underlay becomes particularly important in low-pitch assemblies. Products such as SOLITEX MENTO 3000 provide a vapour-permeable, non-porous underlay that resists bulk water penetration while allowing the roof structure to dry. That drying potential is what reduces long-term moisture stress on a roof with little slope to help it.

For roofs with a pitch below approximately 10°, underlays should be fully supported on a substrate such as sarking and sealed at the laps. This prevents sagging, which can lead to moisture or ice pooling in low points, especially in colder regions of New Zealand.

2. Above Sheathing Ventilation on Low Slopes

For lower-pitch metal roofs, Above Sheathing Ventilation (ASV) becomes essential. A ventilated cavity between the roof cladding and the underlay allows solar-driven convection to remove moisture from the roof assembly.

Both low- and steep-pitch roofs use wind pressure for airflow, but steeper roofs benefit from a stronger stack effect, thanks to the greater height difference between eaves and ridge. On a low-pitch roof, that effect is weaker, so the ventilation cavity has to be larger to make up for the reduced airflow.

The same principle applies to heat management. Increased airflow beneath the cladding helps cool the roofing material and reduces heat stress on the layers below. Lower-pitch roofs, therefore, benefit from a larger ASV cavity to generate sufficient airflow for effective cooling.

3. Stopping Moisture at the Ceiling

Just as Winter Olympic athletes wear high-performance clothing designed to retain warmth while allowing perspiration to escape, buildings must be intentionally designed to manage internal moisture loads.

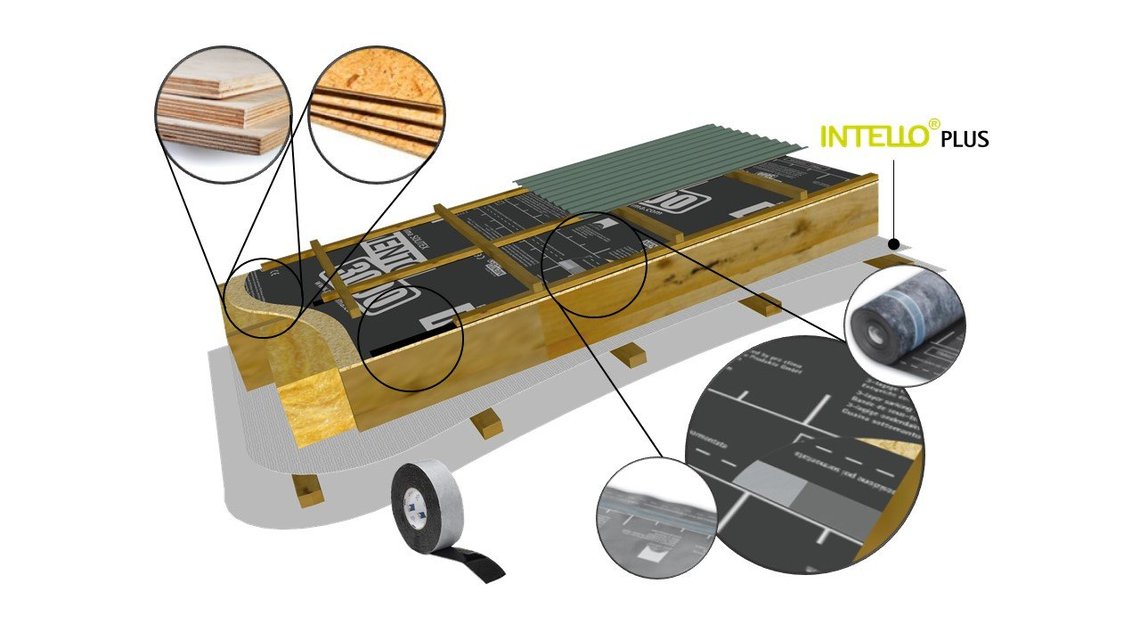

The best design prevents the problem. An internal air barrier such as INTELLO limits convective moisture transport into the insulation and out to the colder external layers, where it condenses. Combine that air barrier with appropriate mechanical ventilation and vapour movement becomes controlled rather than accidental, which significantly reduces condensation risk.

4. Junctions, Eaves and Penetrations

Detailing at eaves, hips, ridges and penetrations matters on any roof, but at low pitch there's no margin for error, because nothing drains away quickly enough to forgive a gap. Continuous weathertightness and airtightness systems, built from monolithic membranes with proven durability and sealed at junctions with airtight tapes, close off unintended air and moisture pathways. That continuity is what keeps the roof's thermal and moisture-control layers doing their job.

While Olympic ski jumpers have one opportunity every four years to demonstrate their perfect performance, design decisions made in roof construction influence building durability for 15 to 50 years or more. Good material selection and detailing at the outset are therefore critical, as rectifying poor design choices later will be both complex and costly.

Architects designing lower-pitch roofs must balance aesthetics with the physical realities of water and heat management. By applying a systems-based approach, specifying appropriate underlays, intelligent airtight barriers, and incorporating deliberate ventilation pathways, low-slope roofs can perform reliably even when gravity is providing little assistance.
