3D Separation Mesh


Advantages
- 8mm separation layer provides increased acoustic insulation and ventilation between underlay and cladding
- Provides a ventilation and drainage path between the underlay cladding
- High thermal stability
- Can be exposed to UV for 90 days
Areas of application

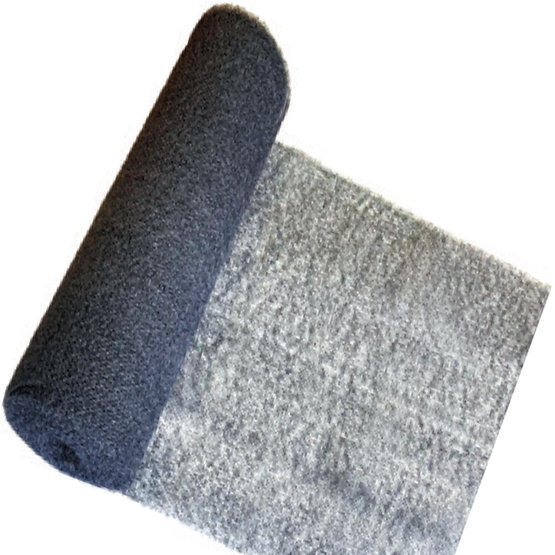

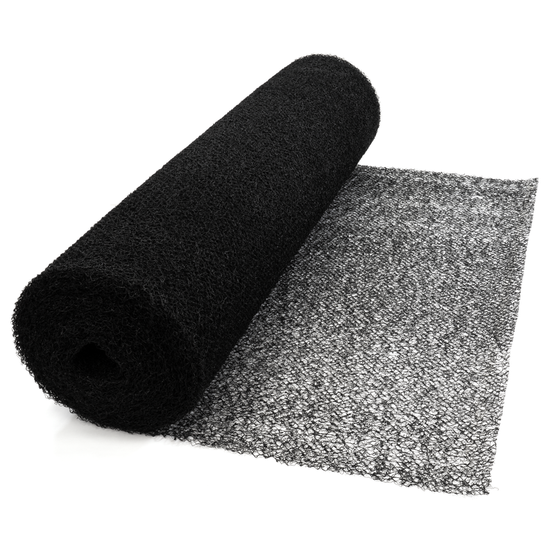

8mm SEPARATION MESH is a 3D polypropylene meslh layer suitable for ventilated and unventilated structures. It can be used in combination with all SOLITEX® roof and wall underlays arnd with any type of roofing or faade material, such as titanium zinc, aluminium, stainless steel, galvanised steel, copper, etc. It is connmonly used in wall insulation retrofit projects fitted from the inside to maintain a separation between cladding and new wall underlay.
Technical specs
Material | |||
Main component | fibrous PP | ||
Property | Regulation | Value | Regulation |
Colour | black | ||
Thickness | 9 mm | ||
Temperature resistance | -20 °C to +80 °C |
