Timber Protection During the Construction Phase

In the past, timber was mainly used on single-family and multi-family homes, but in recent years, with the advent of mass timber products such as LVL, CLT & PLT, timber construction has increasingly been employed for major projects such as office and administrative buildings, schools, kindergartens, modular buildings and the large-scale addition of storeys onto multi-storey residential buildings. Thanks to the high degree of pre-fabrication that is possible with timber structures, construction can be carried out efficiently, economically, precisely and to the highest aesthetic requirements – which also includes visible wooden surfaces with high-standard finishes.

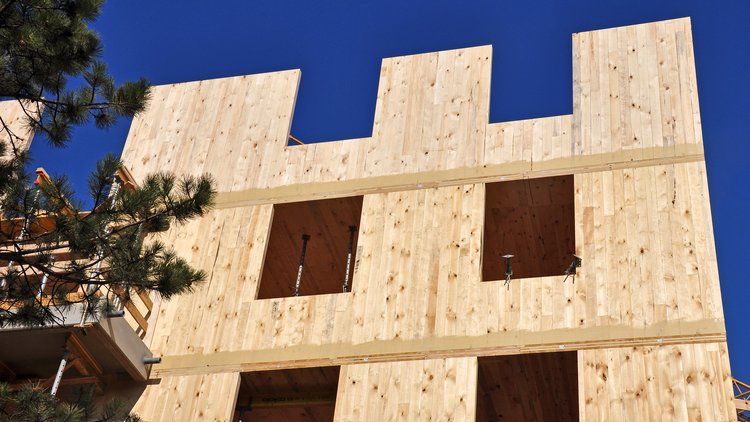

And this is where a major challenge arises: timber construction elements have to be protected against moisture over long periods during the construction period.


Cost-Effective, Reliable Protection with SOLITEX ADHERO

The weathering-protection membranes in the SOLITEX ADHERO series fulfil the requirements of this standard as well as the NZBC Clause B2 - Durability, by protecting engineered & mass timber members from moisture damage both during the construction phase and for the life of the building.

These self-adhesive membranes can be installed on all strong, stable surfaces and have full-surface adhesion with the subsurface. This means moisture cannot spread out underneath the membrane even if it is damaged during construction. And suppose the moisture level in the timber should rise. In that case, this moisture will quickly dry out again – the diffusion-permeable functional membrane in SOLITEX ADHERO actively transports moisture to the outside. As a result, your building structure remains protected!


Benefits of SOLITEX ADHERO

  • Full-surface adhesive: water that penetrates through holes cannot spread out between the membrane and timber component

  • Dry building components: pore-free, diffusion-open TEEE functional membrane actively transports moisture to the outside, if required

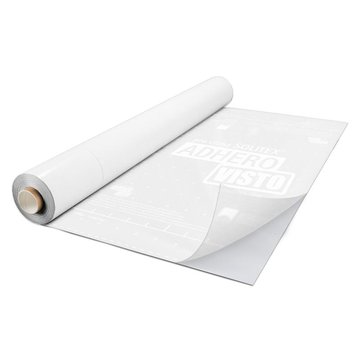

  • Preparation work is now easier with the new transparent SOLITEX ADHERO VISTO membrane: markings, connectors and penetrations on timber floors remain visible

  • Excellent values in hazardous substance testing: SOLITEX ADHERO is ideally suited for construction projects with demanding standards with regard to indoor air quality; this is an advantage over temporary sealing membranes made of polymer bitumen

  • Significantly thinner than bitumen sheeting: walls can be installed directly onto cross-laminated timber floors that have been covered with these membranes without raising the height of the structure or creating problems with measurement tolerances

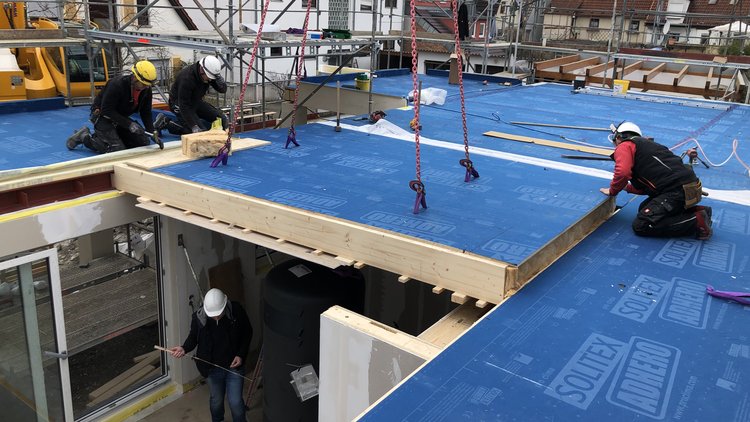

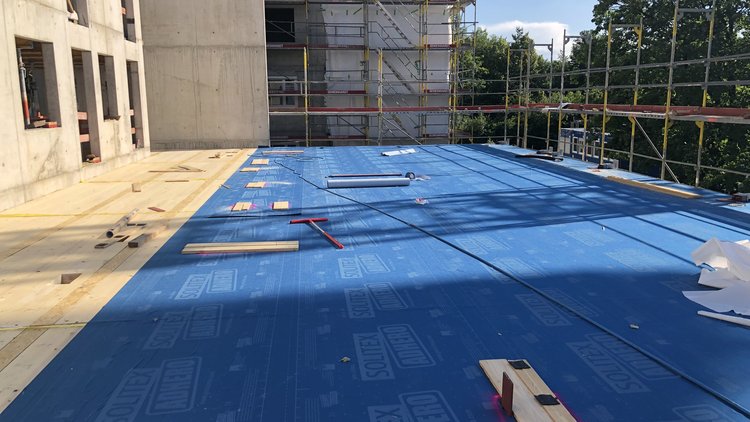

SOLITEX ADHERO - CLT

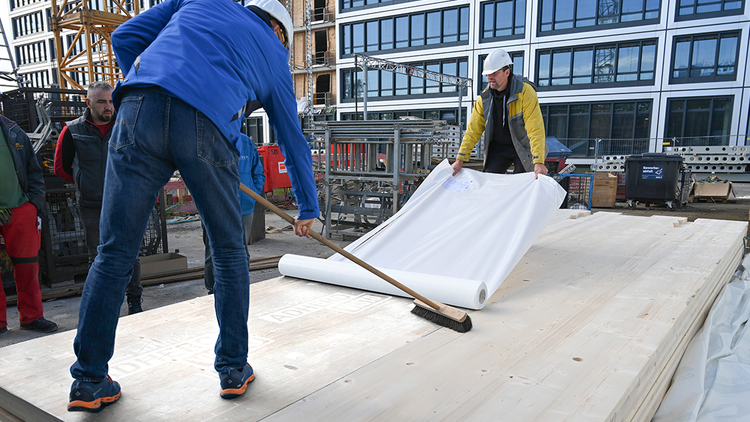

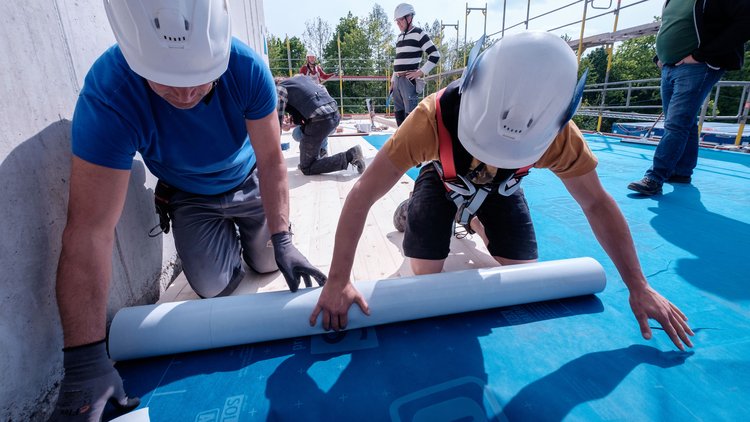

Installation of the transparent SOLITEX ADHERO VISTO membrane

Witterungs- und Bauzeitenschutz für den Holzbau SOLITEX ADHERO

Further Advantages:

  • More cost-effective than temporary roofs: on large building sites, these are often very expensive or else not possible due to the building geometry

  • No slipping or tripping hazards, unlike with loosely installed sheeting. The membranes are non-slip and glare-free, even in wet conditions.

  • Good protection against transport moisture if timber construction elements are covered with SOLITEX ADHERO in the workshop

  • Glare-free working thanks to non-reflecting surface

  • Self-sealing at nail or screw connections

  • Self-contained system offers maximum protection


Use on Floors, Roofs and Walls

Airtightness and weather protection for walls

  • For temporary protection of wall components on timber-elements buildings during construction

  • To achieve airtightness on wood-based products and mineral subsurfaces on the interior and exterior

  • Can also be used on timber walls behind ventilated pre-wall shells

Temporary sealing of floors and roofs during the construction phase

  • For temporary protection of floor components on timber-elements buildings during construction

  • As a nail-sealing pre-underlay on roof decking and suitable wood-based panels (e.g. fibre cement sheet in accordance with AS/NZS 2908.2: 2000) underneath tile or slate coverings

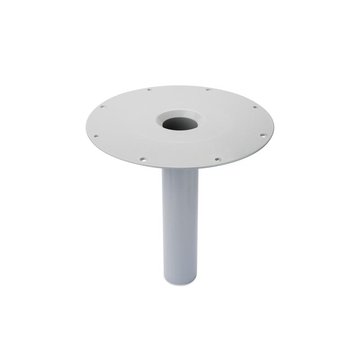

Reliable Protection as Part of a Complete System


Reference Projects Featuring SOLITEX ADHERO



3D render of finished design for Passive House in Raglan

A Builder’s Journey Towards a Healthier Future with His Own Passive House Build

The story of Tilsley’s new family home in Raglan is about their goal of living a happier and healthier life.

more

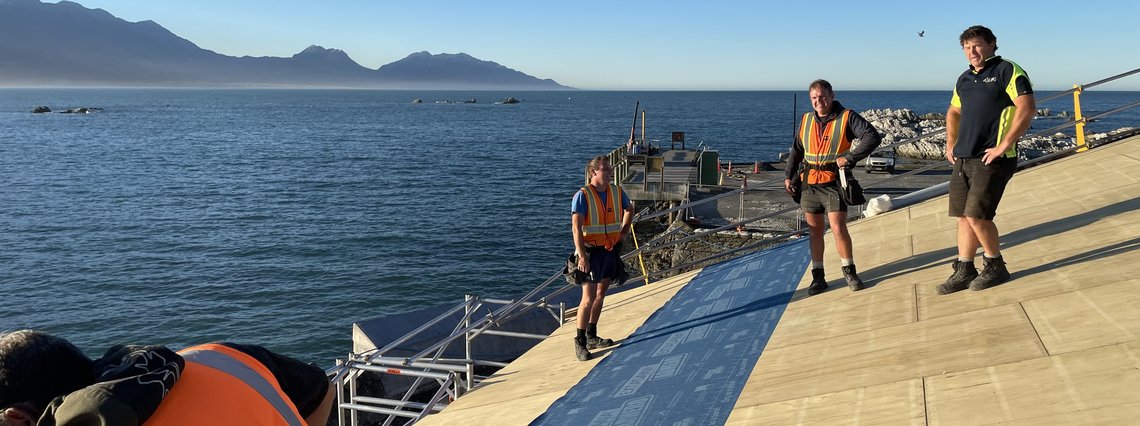

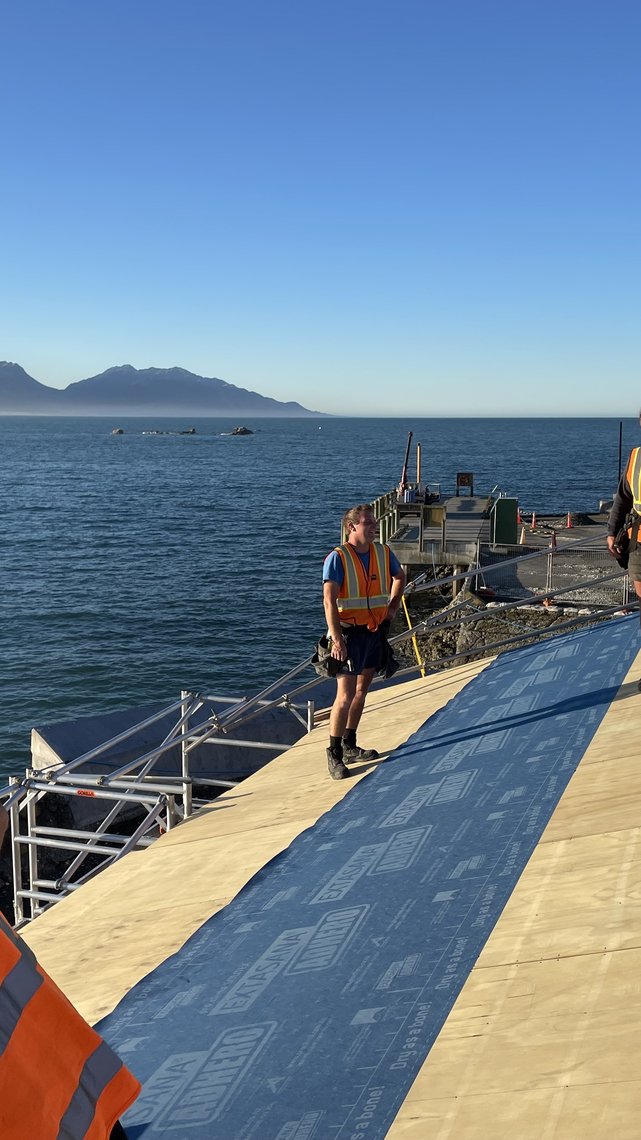

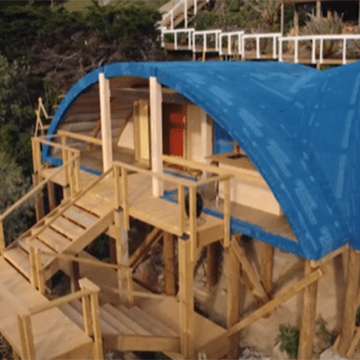

Taylors Mistake House -Blue Suede Roofs wrapped with SOLITEX EXTASANA ADHERO®

Blue Suede Roofs

Taylors Mistake seems like the perfect location for this unique project. The house has beautiful blue suede roofs and a curved roof covered with plywood, protected by SOLITEX EXTASANA ADHERO®.

more



Westlight Project Auckland - The Weathertight Solution for Multi-Storey Buildings

ADHERO: The Weathertight Solution for Multi-Storey Buildings

Westfield Apartments in Auckland protected with fully self-adhesive Weather Resistive Barrier SOLITEX EXTASANA ADHERO®.

more

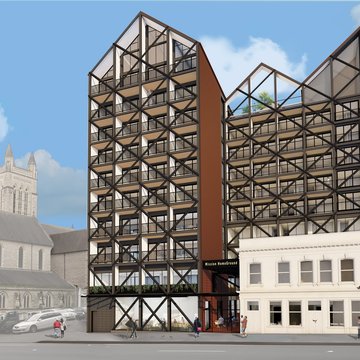

HomeGround Building in Auckland

A Weather Resistive Barrier Solution for Rainscreen Claddings

The Auckland City Mission project offered a great chance to use new technologies in constructing a multi-storey building in a tight space.

more

Information Brochures

Introduction to the SOLITEX ADHERO concept

4-page flyer, including information on new transparent SOLITEX ADHERO VISTO membrane

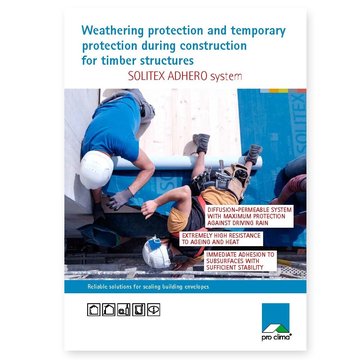

SOLITEX ADHERO system brochure (English)

SOLITEX ADHERO system brochure

40-page brochure, with detailed planning and installation instructions, along with information on auxiliary system products
