CONTEGA® IQ
Interior Joinery Connection Strip
Advantages
- Effective airtight seal around windows and doors
- Outstanding adhesion on cold and/or wet surfaces
- Thin, highly pliable and easily formed around corners
- Flexible and expandable to accommodate building movement
- Airtight connection for the life of the building
Areas of application
Interior use for airtight joints between window and door joinery and internal airtightness layer eg. INTELLO®, plywood, OSB, ICF block, masonry block. The tape has an in-built expansion baffle to allow for relative movement between components.
ID 14897 - CONTEGA IQ with 1 self-adhesive strip for use with masonry or concrete structures
Installation instructions
Installation steps: 1. Timber frame construction, interior

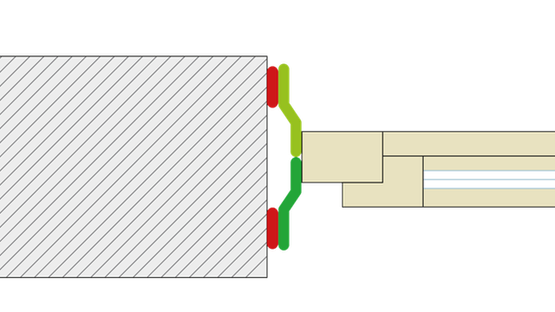

Installation steps: 3. Masonry construction, interior
General conditions
IMPORTANT INFORMATION
- Thin, highly pliable and easily formed into corners and shapes
- Equipped with an expansion joint to accommodate building movement
- Outstanding adhesion in wet and cold conditions
- Fleece side can be plastered or rendered over
PRODUCT DESCRIPTION
CONTEGA® IQ is a durable vapour-permeable adhesive strip to make effective connections of an interior air barrier assembly
to penetrations such as windows and doors. It forms an essential part of a robust interior air barrier system. Made from
polypropylene with acrylate adhesive.
WEATHER EXPOSURE
This product is designed to be installed on building interiors, not in direct sunlight. CONTEGA® IQ should be detailed to
prevent direct continued sunlight onto the product in service.
APPLICATION NOTES
Before application, substrate should be brushed or wiped clean to provide effective adhesion. Surfaces should be even and
smooth enough to provide a clean connection. Surfaces must be free of grease, silicone, and other water repellent
substances. The product should be applied using the pro clima PRESSFIX tool to activate the pressure sensitive adhesive
and ensure a long-term durable seal.
The bond must not be subjected to tensile strain over time. Any load borne by the product must be transferred to the substrate or other supporting materials as necessary.
Note
Expansion slack for increased reliability
The slack included for expansion automatically becomes active if there is relative motion between building structures and provides increased protection against tearing. In this way, CONTEGA IQ provides optimal protection against leaks that could lead to mould and moisture damage to structures.
