TESCON EXTOSEAL®
Installation Guide TESCON EXTOSEAL

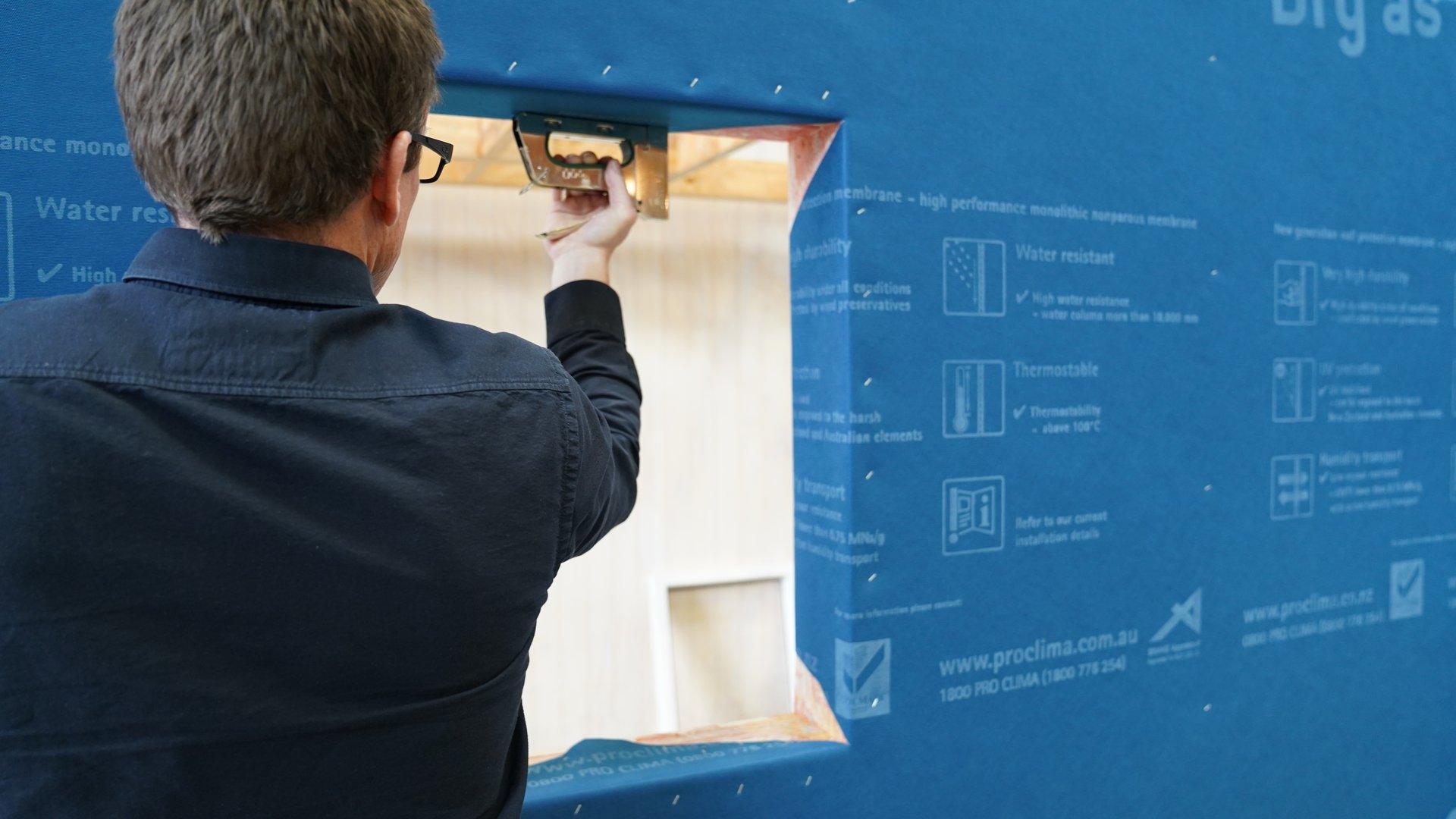

Window Opening Preparation
Fold all wall underlay flaps into the window opening and fix in place sufficient staples on the front face at each corner.
Window Opening Preparation
Fold all wall underlay flaps into the window opening and fix in place sufficient staples on the front face at each corner.

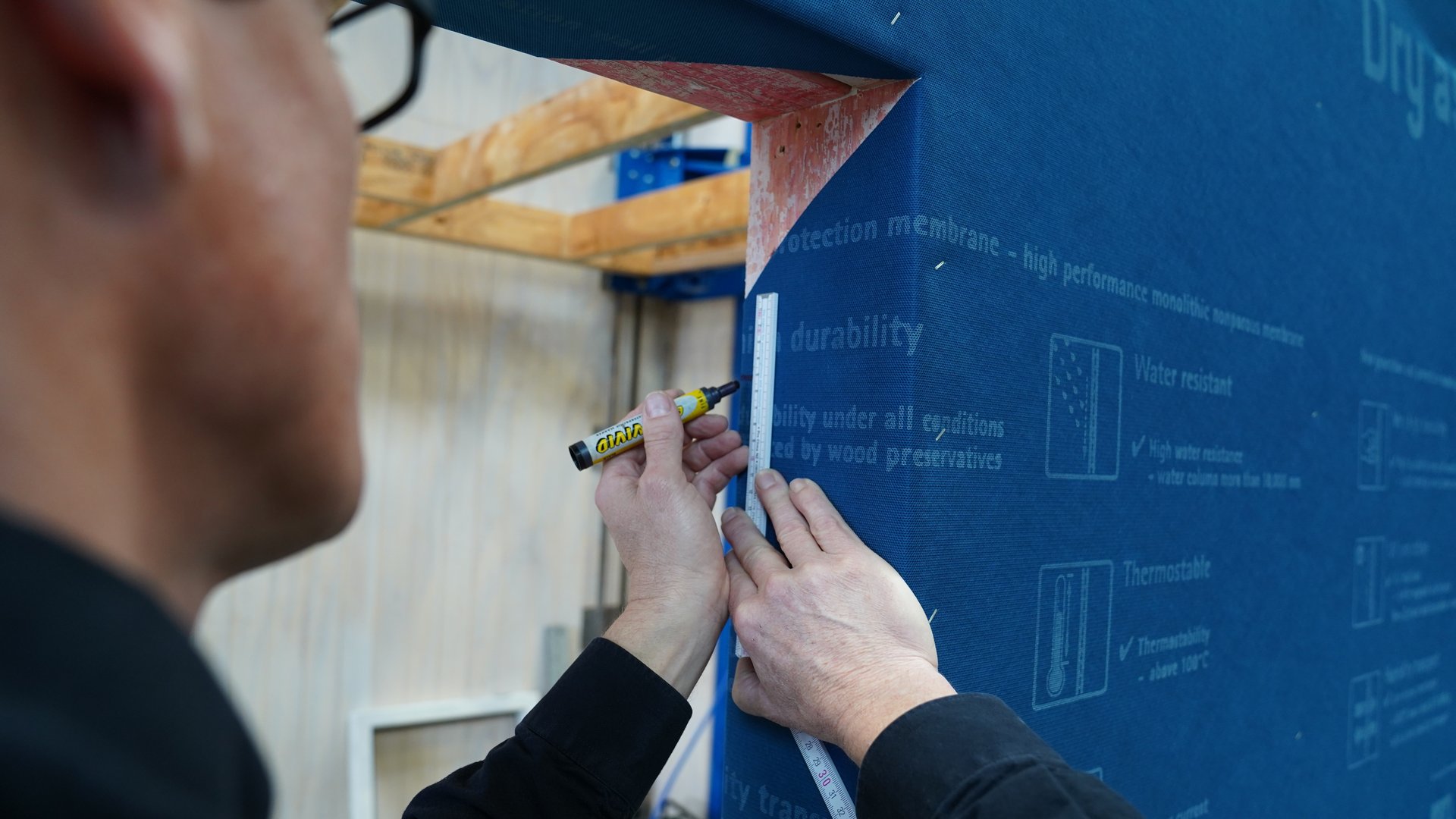

Pre-installation Mark-up
Mark 150 mm from the corners or 50 mm past the exposed timber, whichever is the greater distance.
Pre-installation Mark-up
Mark 150 mm from the corners or 50 mm past the exposed timber, whichever is the greater distance.

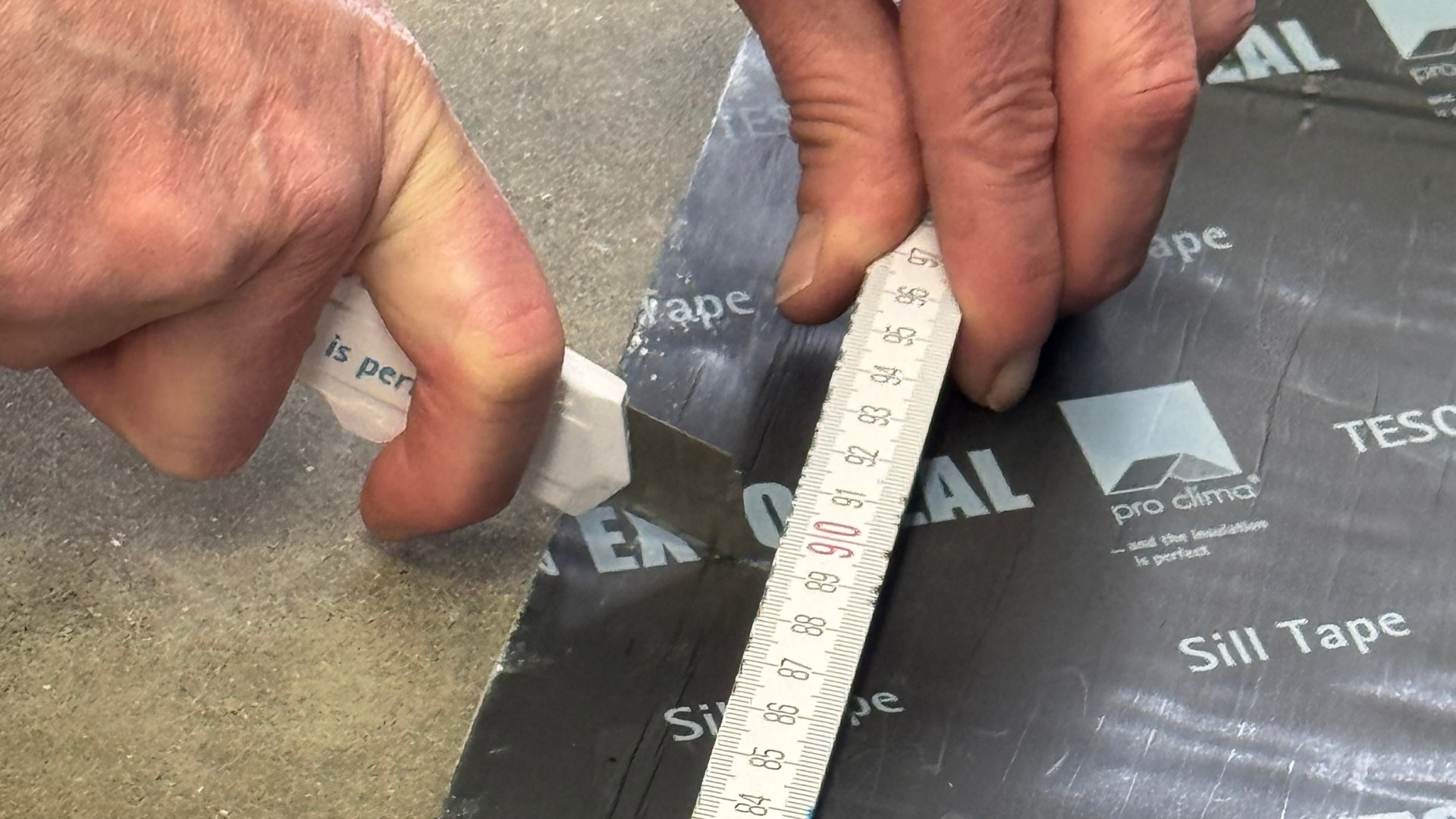

Cut Sill Tape to Length
Cut TESCON EXTOSEAL Sill Tape to length allowing for required cover on jamb.
Cut Sill Tape to Length
Cut TESCON EXTOSEAL Sill Tape to length allowing for required cover on jamb.

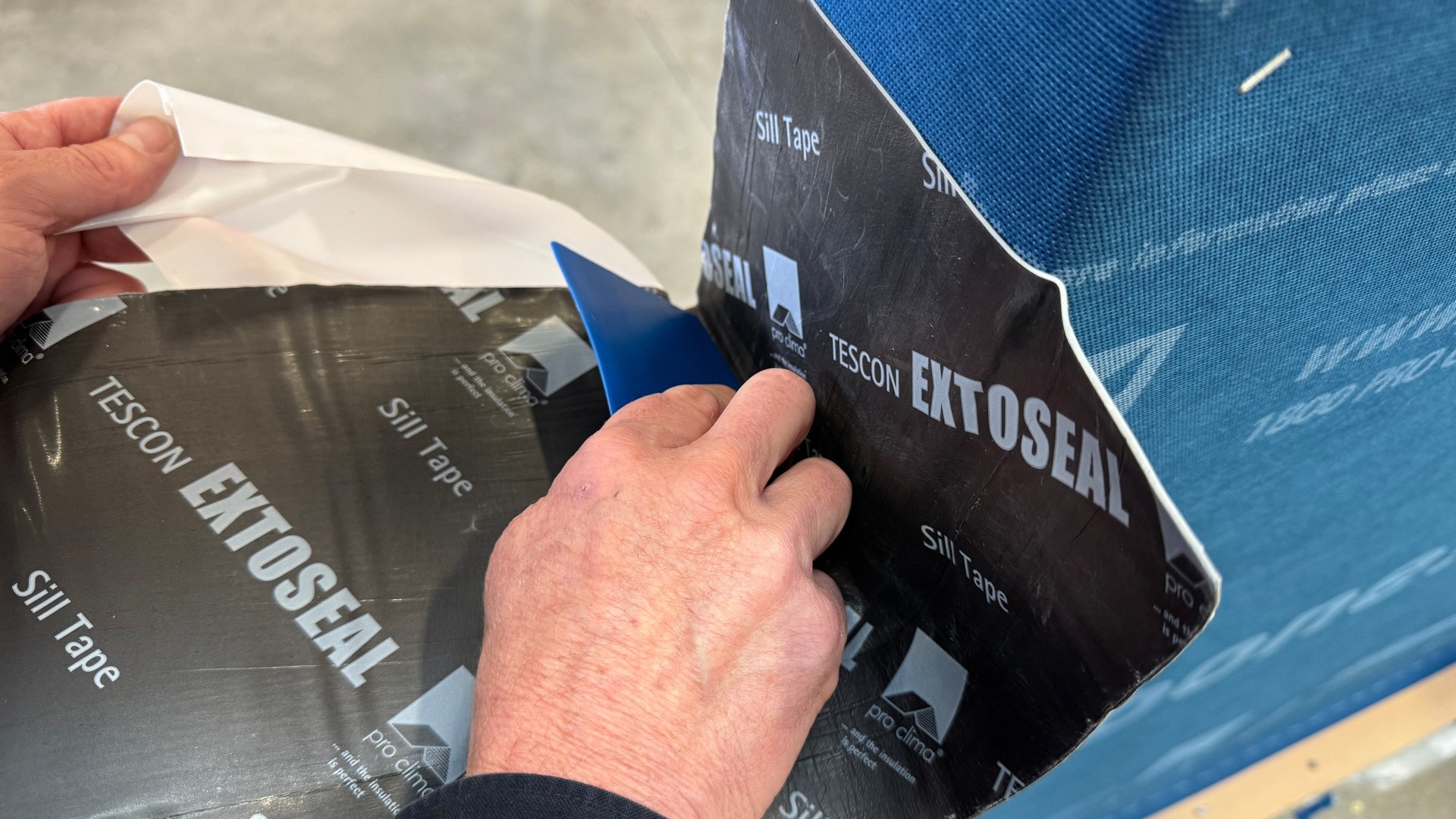

TESCON EXTOSEAL Sill Application

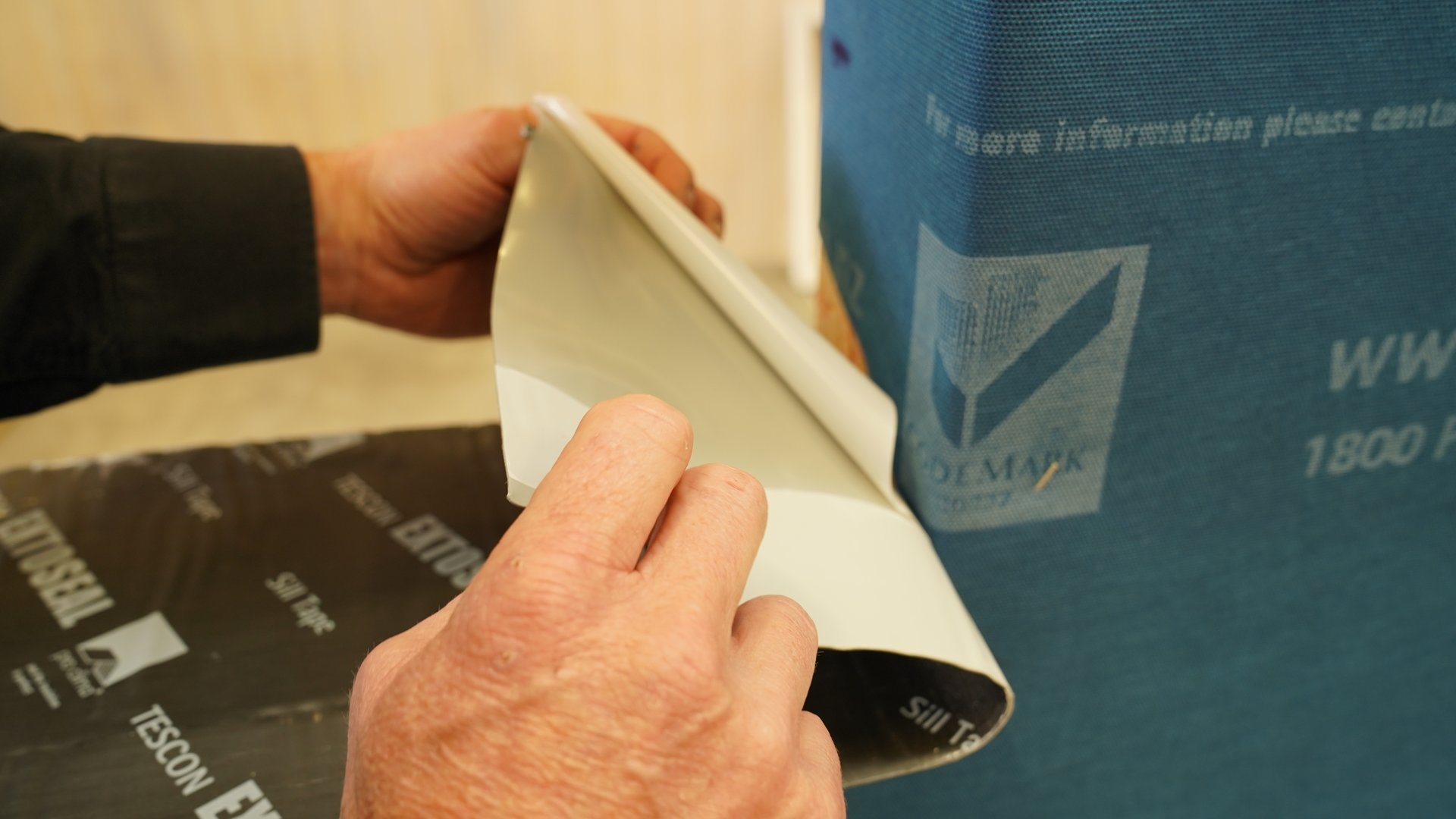

Start to remove the wide release strip. Install the Sill Tape from the first pre-installation measurement.
TESCON EXTOSEAL Sill Application
Start to remove the wide release strip. Install the Sill Tape from the first pre-installation measurement.
TESCON EXTOSEAL - Corner Aplication
Apply the Sill Tape tightly in the corners as you work using the pro clima PRESSFIX.
TESCON EXTOSEAL - Corner Aplication
Apply the Sill Tape tightly in the corners as you work using the pro clima PRESSFIX.

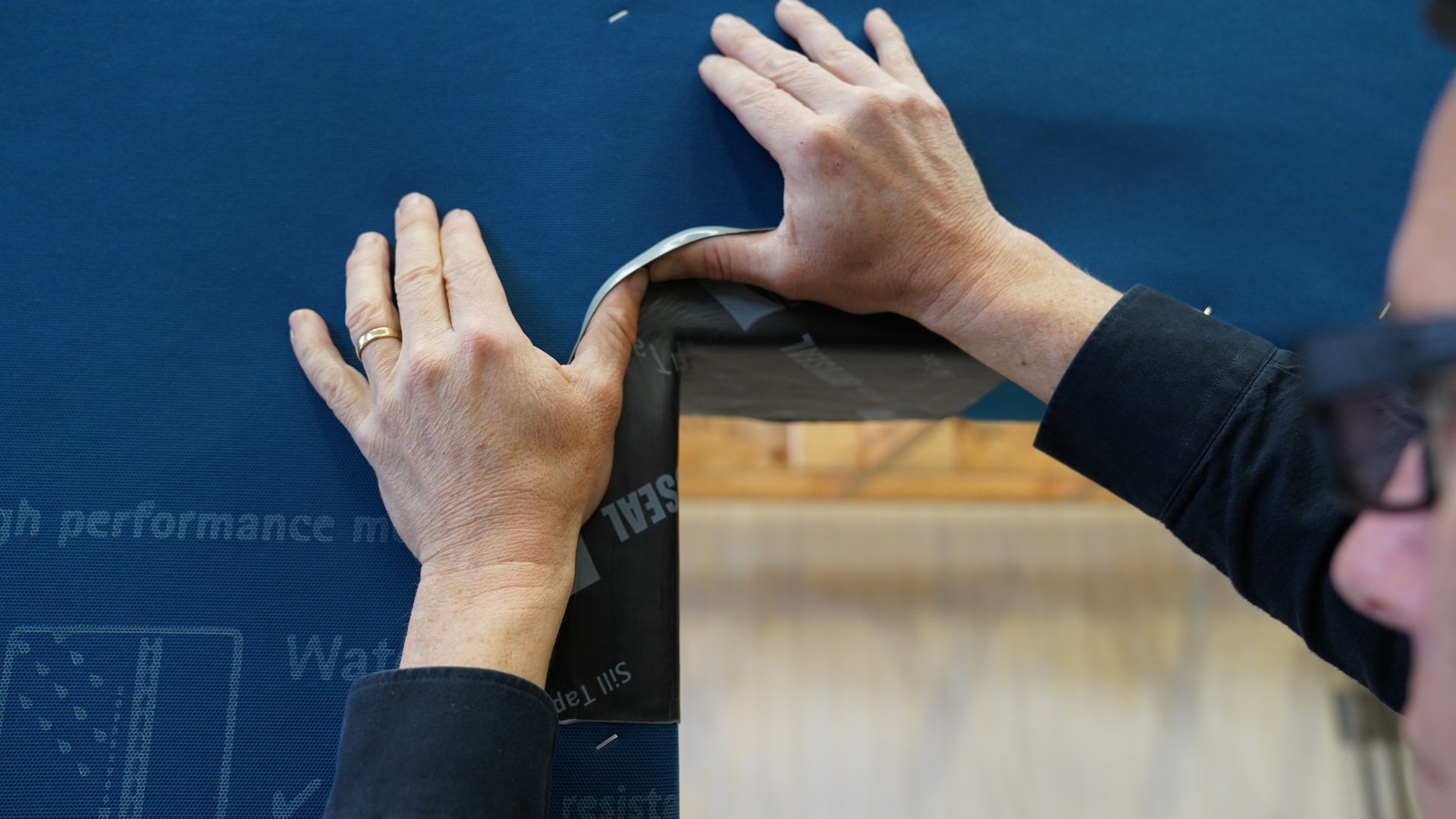

TESCON EXTOSEAL - Corner Aplication

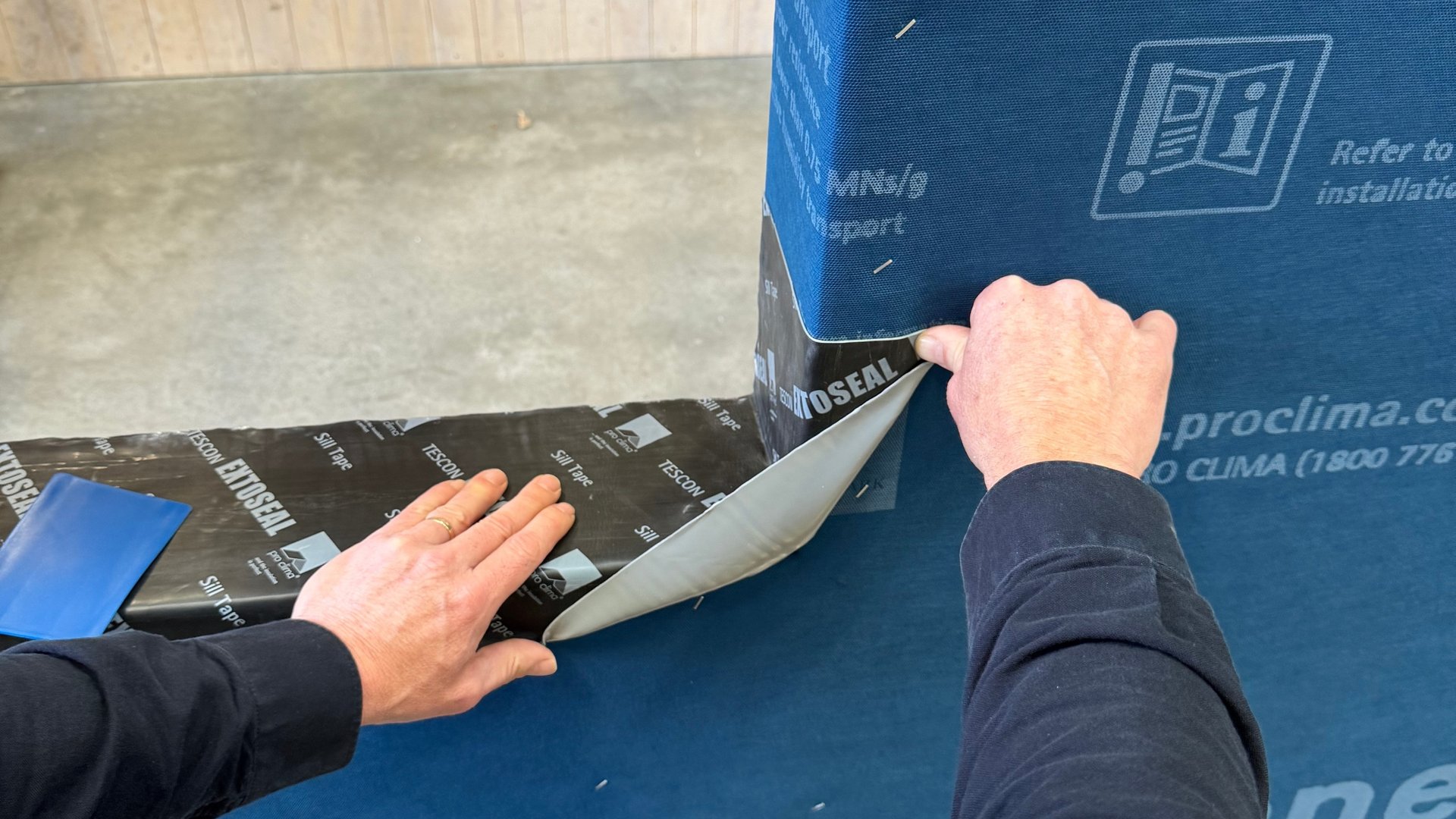

Remove the remaining release strip. Tack the top corner and at the sill as shown.
TESCON EXTOSEAL - Corner Aplication
Remove the remaining release strip. Tack the top corner and at the sill as shown.
IMPORTANT
TESCON PRIMER RP penetrates into the sub-surface of porous substrates locking up loose particles and creating a highly adhesive substrate for the TESCON EXTOSEAL to be applied to. TESCON EXTOSEAL can also be applied while the TESCON PRIMER RP is still tacky or is fully dry. ORCON CLASSIC glue can be used as a primer and is recommended when sealing to uneven and porous masonry surfaces.

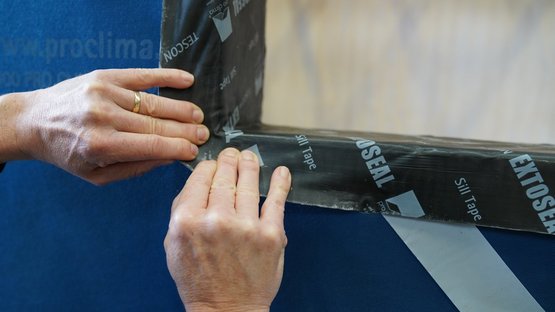

Corner Application
Roll Sill Tape onto the face of the weathertightness layer.
Corner Application
Roll Sill Tape onto the face of the weathertightness layer.

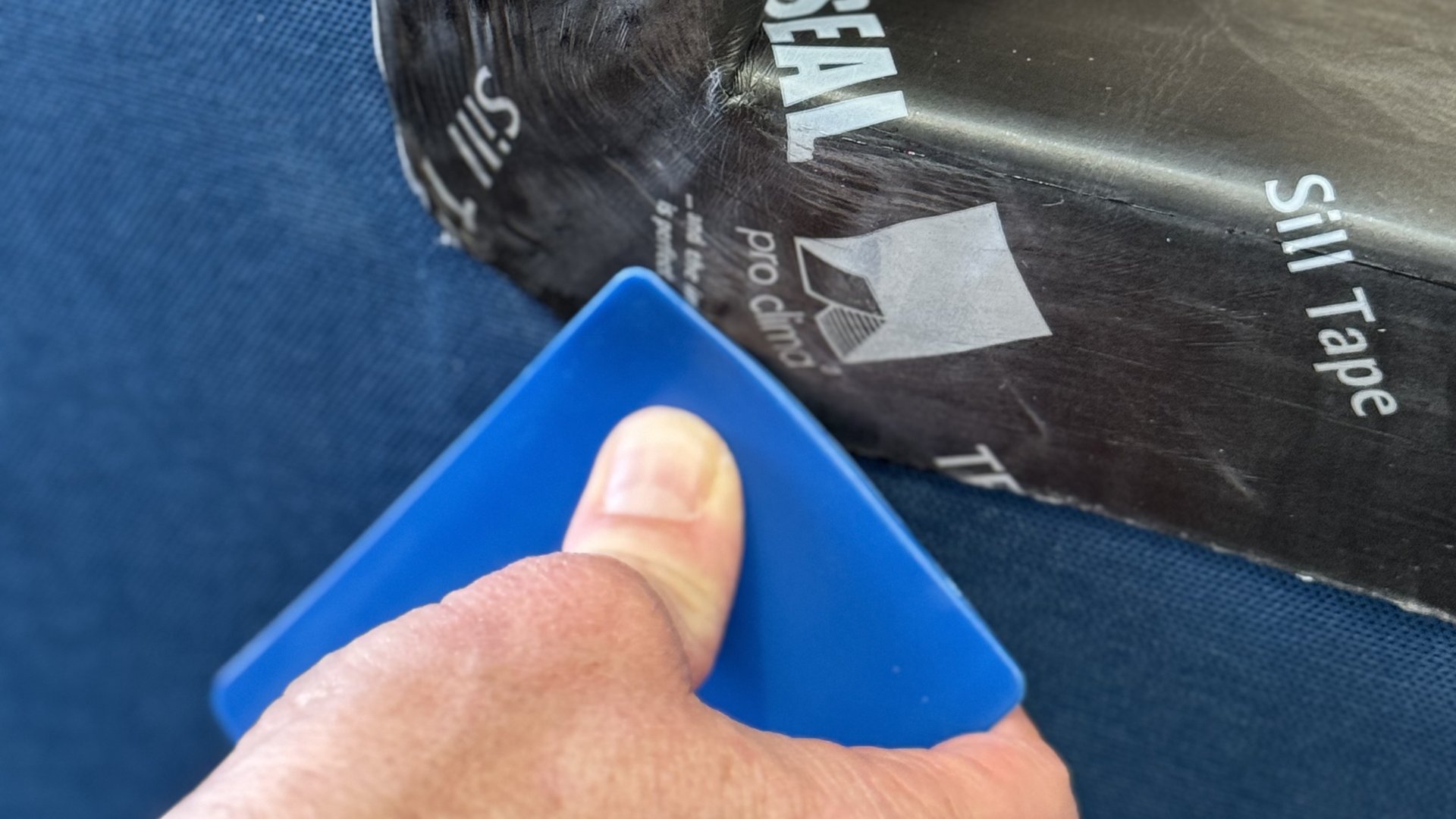

Corner Application
Ensure you apply the Sill Tape firmly using the pro clima PRESSFIX.
Corner Application
Ensure you apply the Sill Tape firmly using the pro clima PRESSFIX.
Jamb / Head Installation
TESCON EXTOSEAL should extend minimum 150 mm vertically and horizontally, or 50mm coverage of exposed timber, whichever is the greater. Apply with the same methodology as steps above.
Jamb / Head Installation
TESCON EXTOSEAL should extend minimum 150 mm vertically and horizontally, or 50mm coverage of exposed timber, whichever is the greater. Apply with the same methodology as steps above.

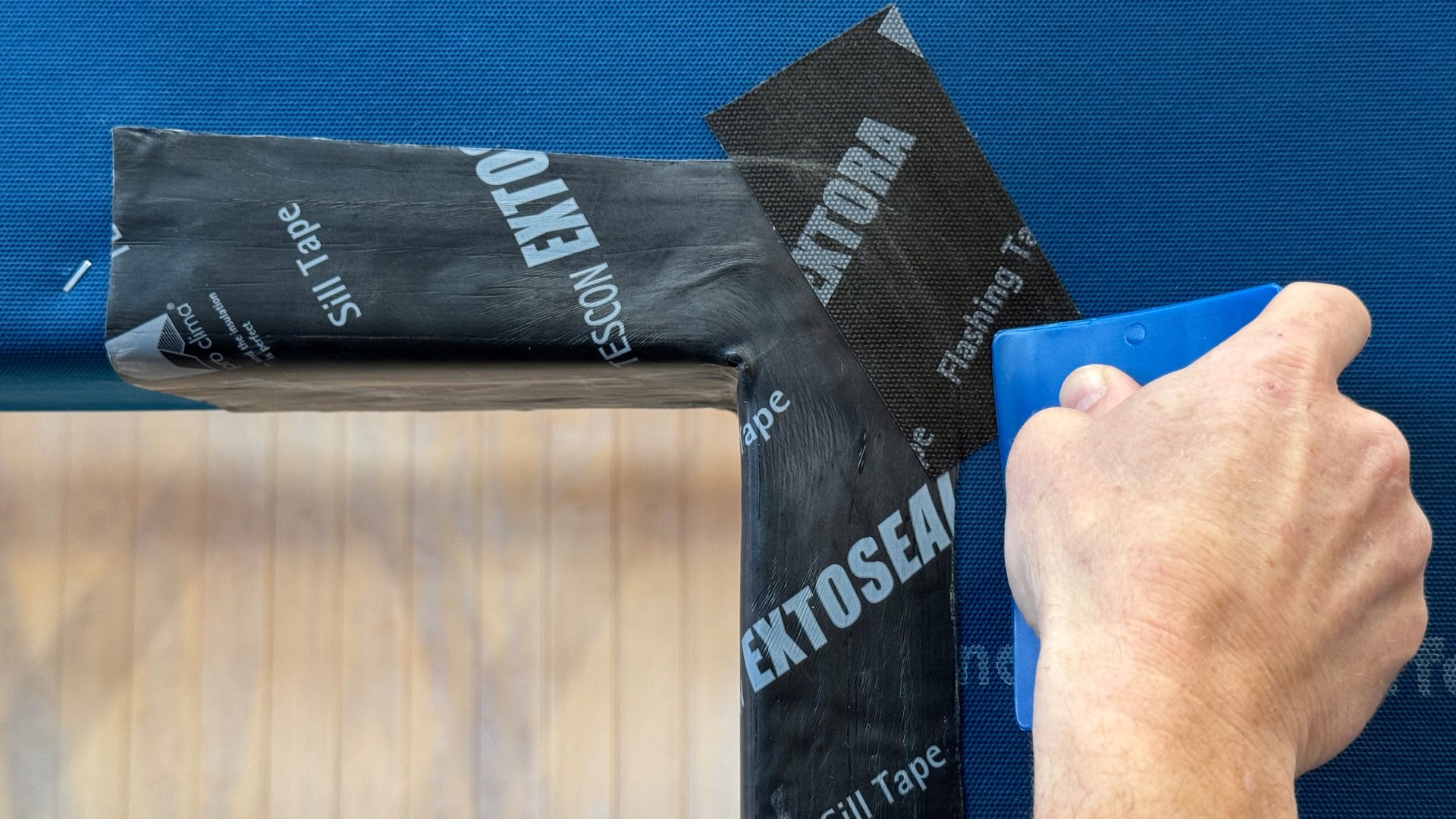

Butterfly
Where TESCON EXTOSEAL has been over-stretched or damaged, apply a butterfly of TESCON EXTORA.
Butterfly
Where TESCON EXTOSEAL has been over-stretched or damaged, apply a butterfly of TESCON EXTORA.
IMPORTANT
EXTOSEAL Sill Tape is used in conjunction with LOSP (light organic solvent preservative) treated timber, the solvent from the timber treatment must be allowed to evaporate prior to the installation of the product.
Recommendations and requirements
• TESCON EXTOSEAL self-seals around penetrations such as screws used for window installation. Any damage or tears should be patched using TESCON EXTOSEAL and/or TESCON EXTORA. • TESCON EXTOSEAL has a 180 days UV exposure limit prior to cladding. • TESCON EXTOSEAL can also be used behind cladding brackets or cavity battens to seal penetrations through weathertightness membranes. • TESCON EXTOSEAL can be used as a pliable flashing tape moulded around three-dimensional junctions with a reliable level of weathertightness performance.
