KAFLEX multi
Cable Sealing Grommet
Advantages
- Suitable for up to 16 cables
- Airtight & watertight for the life of the building
- High-quality EPDM, extremely flexible and elastic
- Excellent UV exposure – up to 180 days
- Supplied with TESCON EXTORA® Weathertight sealing tape for ext,ernal and internal installation
Areas of application
KAFLEX multi is an airtight, weathertight EPDM grommet designed to seal up to 16 cable penetrations in facades and roof linings. Flexible and UV stable for up to 180 days, KAFLEX is integral to all air and weather-resistant barrier systems. It is compatible with membranes, underlays, rigid sheathings, rigid wall underlays, and rigid air barriers. Supplied with tape and a hole punch.
Installation instructions
Installation steps
General conditions
IMPORTANT INFORMATION
- KAFLEX multi cable sealing grommet for up to 16 cables, Ø 4.8 - 12 mm
- Most suited to round power cables and data cables.
PRODUCT DESCRIPTION
KAFLEX multi is an EPDM cable sealing grommet. Its excellent workability creates secure, permanent, airtight seals where round cables penetrate membranes and smooth, non-mineral surfaces.
WEATHER EXPOSURE
This product is designed for use with external weather resistive barriers (WRB) systems and internal air barrier systems. It will handle up to 180 days of direct exposure to UV and still fulfil the intended use for air and water control. Cladding systems should be detailed to prevent direct sunlight from reaching the TESCON® EXTORA flange in service.
APPLICATION NOTES

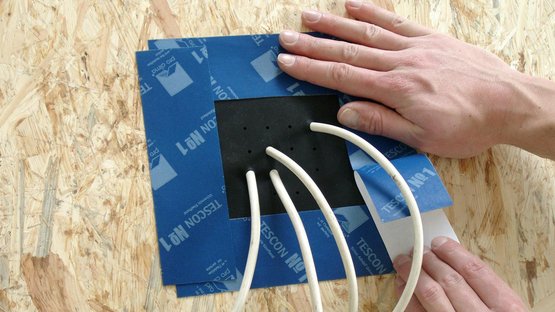

This product should be applied using the pro clima PRESSFIX tool to activate the pressure-sensitive adhesive and guarantee a long-term durable seal. The product is most suitable for circular cables, providing the best airtight seals. For flat cables, consider KAFLEX post, TESCON® EXTORA or TESCON® EXTORA PROFIL for optimum air & watertight seals.
