Corner Sealing Tape

TESCON® PROFIL

Advantages

  • Specially designed for corner applications
  • Three individual removable strips of release paper
  • Long-term durability
  • Instant visual check of air seal, no drying time required
  • Flexible to account for building movement

Areas of application

TESCON® PROFIL is specially designed for a secure and permanent airtight seal of junctions between INTELLO® lntelligent Air Barrier and window and door joinery. TESCON® PROFIL corner sealing tape is a valuable component of all air barrier systems. TESCON® PROFIL is airtight and vapour permeable. It is flexible, easy to cut, and has a simple-to-remove release paper, ensuring maximum productivity during installation. Use as a reliable and strong substitute for PEF rod and foam, or PEF rod and Wetseal. Tested to NZS4284:2008 achieving in excess of 4.85kPa.

Installation instructions

General conditions

IMPORTANT INFORMATION

  • Long-term durability to ensure airtight seals for the life of the building.
  • Thin, highly pliable, flexible and easily formed into corners and shapes.
  • Release paper can be removed in either 2 or 3 release paper strips, allowing for many installation scenarios.
  • Can be used to seal penetrations in INTELLO®.

PRODUCT DESCRIPTION
TESCON® PROFIL is a multi-purpose adhesive tape specially formulated for corner applications and forms a valuable part of your air barrier system. Made from polypropylene with acrylate, it has excellent workability and adhesion for the secure and permanent airtight seal of junctions between INTELLO® and window and door joinery. It is also suitable for joints between membranes and smooth, non-mineral surfaces. It is also suitable for sealing junctions between wood-based materials.

WEATHER EXPOSURE
This product is not designed for external use but will handle some direct exposure to UV and still fulfil the intended use for air control. Envelope and reveal details should be detailed to prevent direct sunlight on TESCON® PROFIL in service.

APPLICATION NOTES

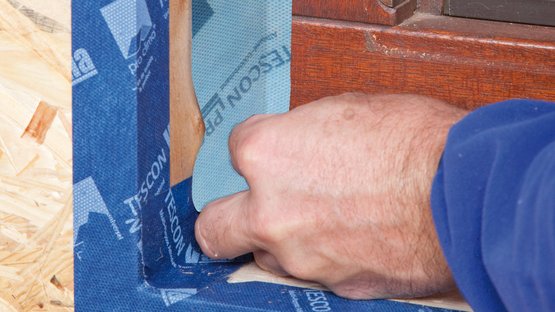

This product should be applied using the pro clima PRESSFIX tool to activate the pressure-sensitive adhesive and guarantee a long-term durable seal.

Specially formulated for applications in corners of windows or doors, TESCON® PROFIL comes in a 60 mm width with a split baking 12 / 23 / 25 mm for multiple installation options and scenarios.
